K98
High Lumen Efficacy 85lm/W Body - Stainless Steel and Aluminum Cover - Clear Glass Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Handrail
IP 67 500mA DC3V / DC12V / DC24V
2K98-W-27-60-0-A
Model K98 |
2K98-W-27-60-0-A |
||||
|

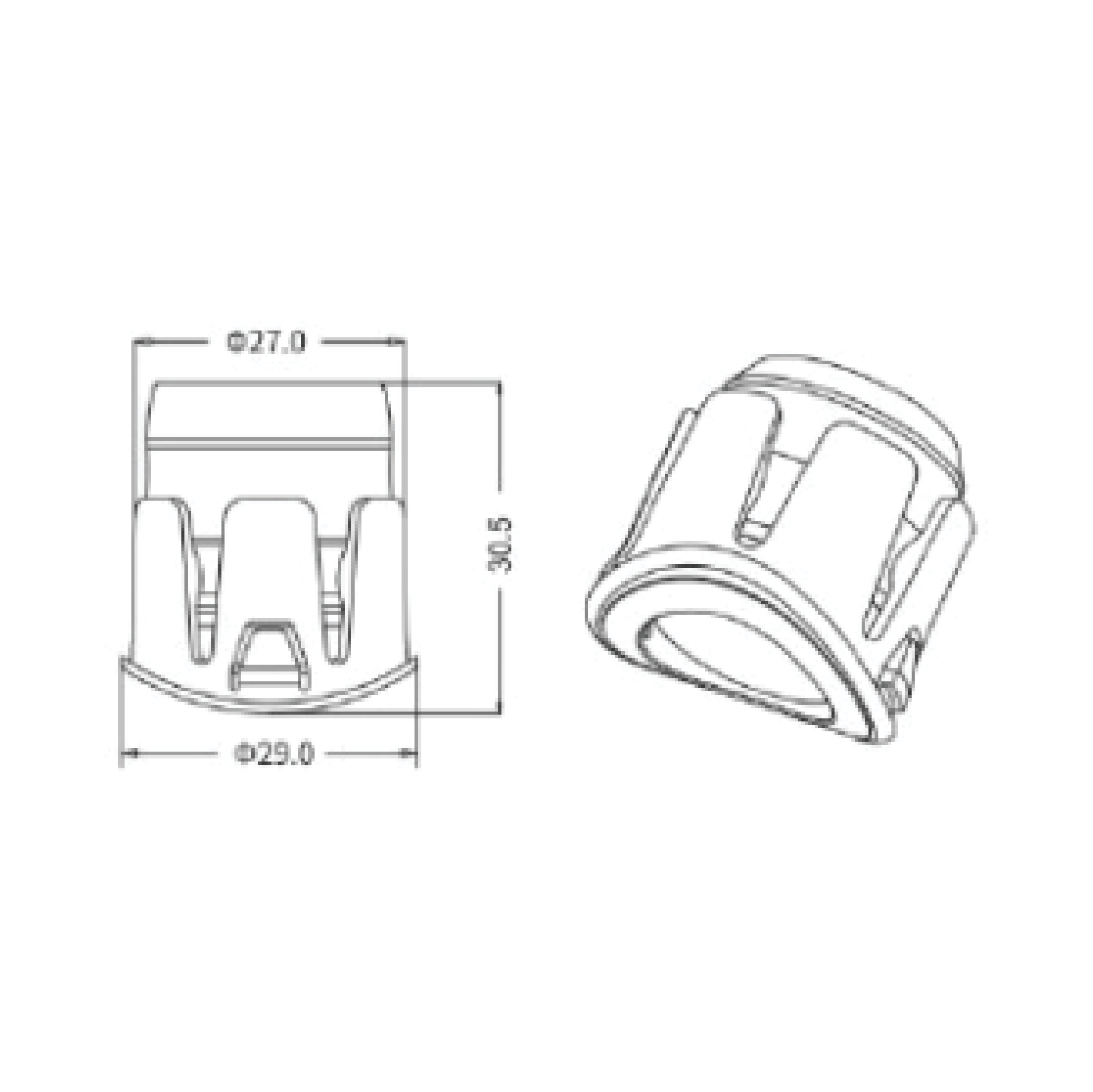

Size |
A Ø29 X H26.7mm |
B Ø29 X H30.5mm |
|||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
26° | 60° | 80° | ||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
RGB |
|
Finishing |
White | Stainless Steel | |||
|
Wattage |
1.5 | 2 | |||
