R47
High Lumen Efficacy 100lm/W Body - Cast brass shade, louvers, and base assembly Lens - Industry standard vapor-proof, prismatic, tempered glass Glowing Wire Test - 850° Temperature - ta=-20 °C ~ ta max=65 °C Class - I
These pathlights are the ultimate in heavy duty landscape lighting.
Made of cast brass, they are larger than other our pathlights. The multilouver design uses incandescent, metal halide, xenon, and omnidirectional LED lamps. The single-louver design uses MR16 LEDs
and integrated LED light engines.
FIELDS OF APPLICATION
Outdoor Gardens, Parks, Pathways,
IP 65 IK 10 LED/GU5.3/G4 McA Step 3 12V/220~230V
3 R 4 7 - B R - 3 0 - 1 8 0 - 0 - A
Model R47 |
3 R 4 7 - B R - 3 0 - 1 8 0 - 0 - A |
||||
|
Size |

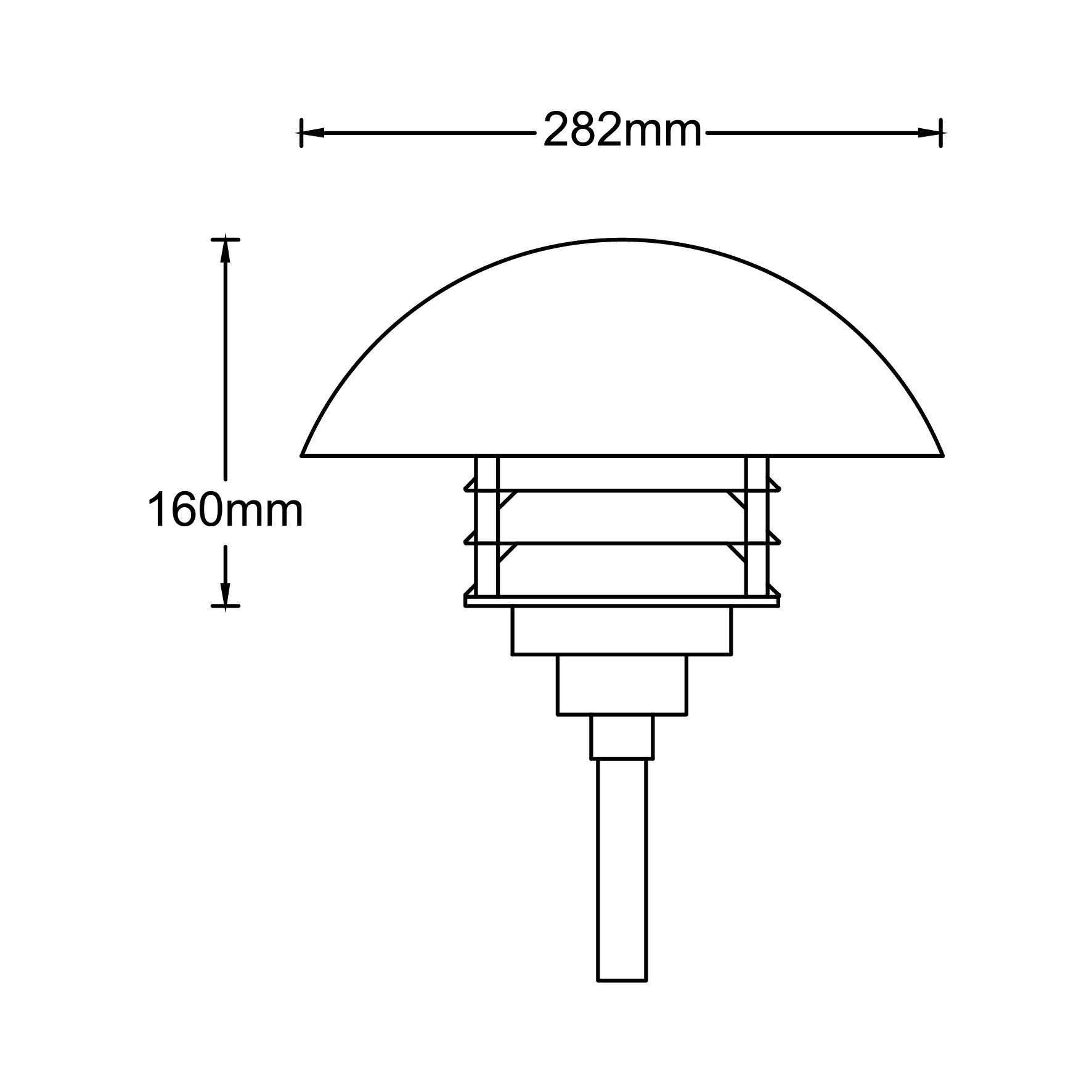

A Ø282 X H160mm - Stem 400 |
B Ø282 X H160mm - Stem 500 |
C Ø282 X H160mm - Stem 600 |
||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
180° | ||||
|
Kelvin |
27 2700K |
28 2800K |
30 3000K |
||
|
Finishing |
White | Dark Grey | Black | Silver | Rust |
|
Wattage |
03 | 05 | 06 | 11 | |
