W34
High Lumen Efficacy 90lm/W Body - Die Cast Aluminum Diffuser - Clear Tempered Glass Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
All Outdoor Wall Areas
IP 66 IK 09 LED McA Step 3 220~240V
2 1 W 3 4 - G - 3 0 - 5 - 0 - A
Model W34 |
2 1 W 3 4 - G - 3 0 - 5 - 0 - A |
||||
|

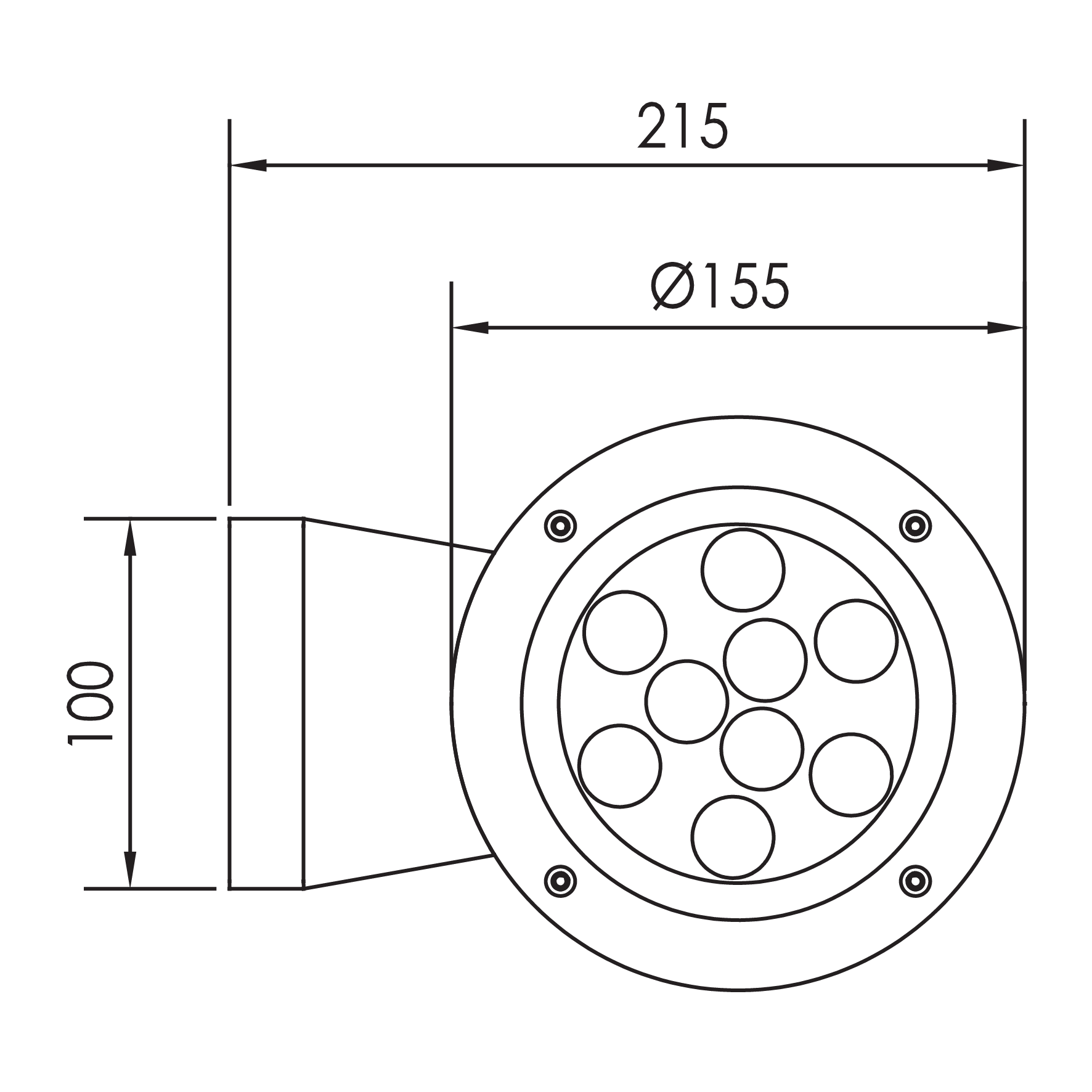

Size |
A Ø155 X 250mm |
B Ø155 X 350mm |
|||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
5° | 8° | 12.5 | 20° | 30° |
|
Kelvin |
27 2700K |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
Finishing |
White | Dark Grey | Black | ||
|
Wattage |
21 | 36 | |||
